Platform Components: Turning frame assy / Turning frame assy / Swing cylinder / Slew unit
In this article you will find useful links to find the part you need most on the spare parts portal.

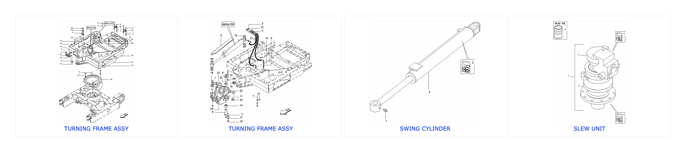

The platform is divided into 4 sub-categories that allow you to identify the specific components for your need.
(Link to ecommerce | Subcategories Platform)

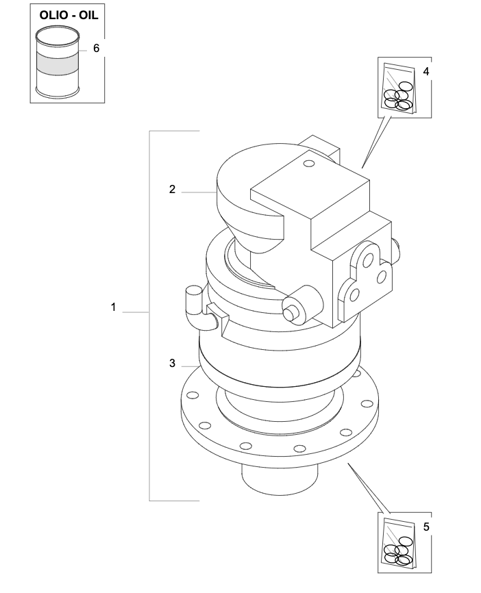

Slew Unit
Ecommerce links | Slew Unit
List of products under the category Rotation Group:
1. 8E66619802 - SLEW UNIT
2. 8E66619805 - HYDRAULIC MOTOR
3. 8E66619806 - GEARBOX
4. 8E66619807 - GASKET KIT
5. 8E66619808 - GASKET KIT
6. 9I45030003 - OIL 85W140

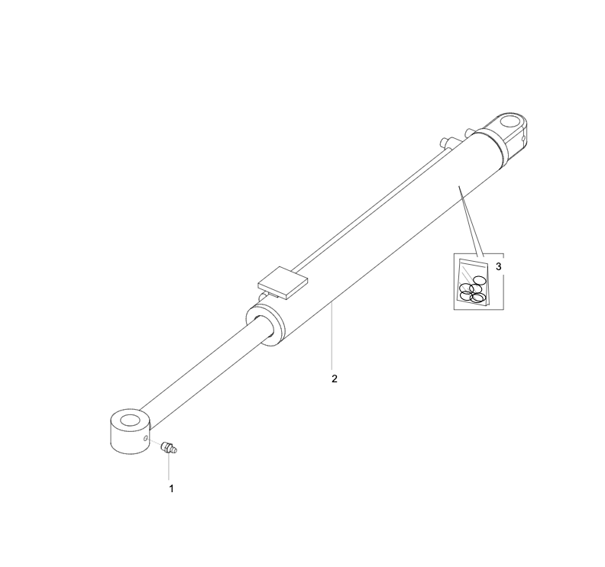

Swing Cylinder
Ecommerce-Links | Swing Cylinder
List of products under the category Arm Angle Cylinder:
1. 8E56015623 - GREASE FITTING
2. 8E66626601 - SWING CYLINDER
3. 8E66626605 - SEAL KIT

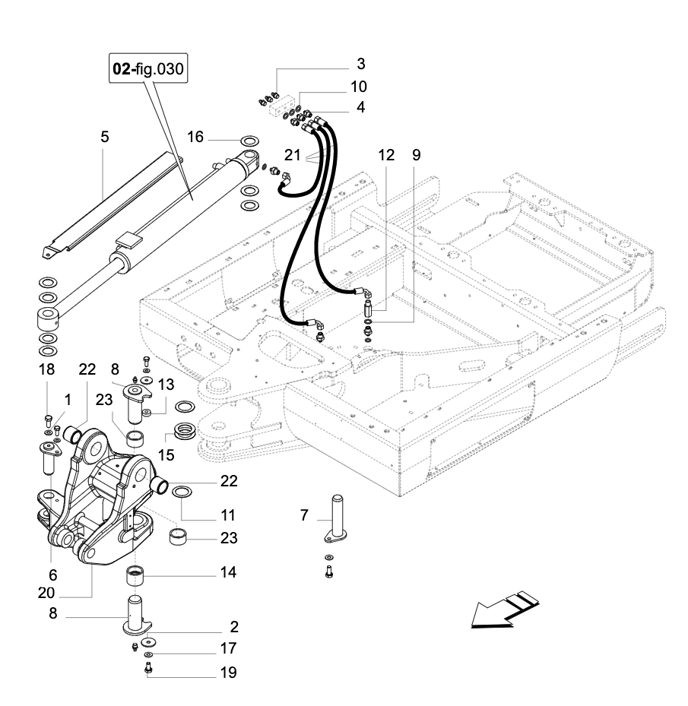

Turning frame assy
List of products under the category Turning frame assy:
- 4I52176003 FLAT WASHER
- 8E52179004 WASHER
- 8E56015623 GREASE NIPPLE DIR.
- 8E56015648 REDUCTION JOINT
- 8E66011754 GUARD
- 8E66012752 PIN
- 8E66012753 PIN
- 8E66612601 PIN
- 8E66015641 BONDED-SEAL
- 8E66015643 BONDED-SEAL
- 8E66015783 WASHER
- 8E66015838 EXTENSION M-F
- 8E66311676 PIN RETAINER
- 8E66313801 BUSHING
- 8E66315750 FLAT WASHER
- 8E66315753 FLAT WASHER
- 8E66615510 CONICAL WASHER
- 8I52115519 SCREW TE M10X 25 8.8
- 8I52115575 SCREW TE M10X 20 8.8
- 8I66611810 SWING COLUMN
- 8E66028790 FLEXIBLE HOSE
- 8E66613804 BUSHING
- 8E66613802 BUSHING
